You’ve got a water truck and a dusty job site. Seems simple enough. Fill the tank, spray the water, and control the dust. But the spray system you choose affects how well that actually works. The right setup covers your site efficiently with minimal waste. The wrong setup leaves you making extra passes or running out of water too fast.
Water truck spray systems come in different configurations because different sites need different coverage. Understanding what each component does and when you need it helps you spec equipment that works for your specific conditions rather than just buying whatever’s standard.
Let’s break down what you’re actually looking at when you choose a spray system.
Basic Spray System Components Explained Simply
Every water truck spray system has a few core components that work together. You don’t need to be an engineer to understand what they do.
The basic parts:
- Spray heads – These are the nozzles that turn pressurized water into spray patterns
- Spray bars – Mounted pipes that hold multiple spray heads for wide coverage
- Water cannons – Large nozzles for long-range spraying
- Pumps – Move water from the tank through the system
- Valves – Control water flow to different parts of the system
- Controls – Let you operate everything from the cab
Each component serves a purpose. Spray heads create the actual spray pattern you see. Spray bars let you cover wide areas without moving the truck. Cannons reach spots you can’t drive to. Pumps provide the pressure that makes it all work. Valves let you direct water where you need it. Controls make the operation practical from the driver’s seat.
The system works as a package. You need adequate pump capacity for the spray heads you’re running. Your valves need to handle the flow you’re pushing through them. Everything connects to create coverage that matches your needs.
Spray Pattern Types and What They’re Best For
Different spray heads create different patterns. The pattern you need depends on what you’re trying to accomplish.
Common spray patterns:
- Fan patterns – Create a flat, wide spray like a hand-held garden nozzle
- Cone patterns – Produce a circular spray that covers a round area
- Jet streams – Focused streams for reaching specific spots
- Mist patterns – Fine droplets that float and settle slowly
Fan patterns work well for road watering, where you want consistent coverage across a width. The flat spray distributes water evenly without creating puddles or leaving dry strips.
Cone patterns are good for general dust suppression over areas. The circular coverage helps when you’re spraying stockpiles or work zones where exact edges don’t matter as much.
Jet streams reach further but concentrate water in a smaller area. You use these when you need distance or want to break up clumps and knock down heavy dust.
Mist patterns keep dust and airborne particles from spreading. The fine droplets catch dust before it travels, though they don’t work well in the wind.
Matching the pattern to the application matters. Using a mist pattern on a haul road wastes water. Using a jet stream for general dust suppression means you’re constantly moving the truck. Pick patterns that cover your typical conditions efficiently.
Spray Bar Configurations: Rear, Side, and Front Applications
Spray bars mount on different parts of your truck depending on what you’re spraying and how you’re driving.

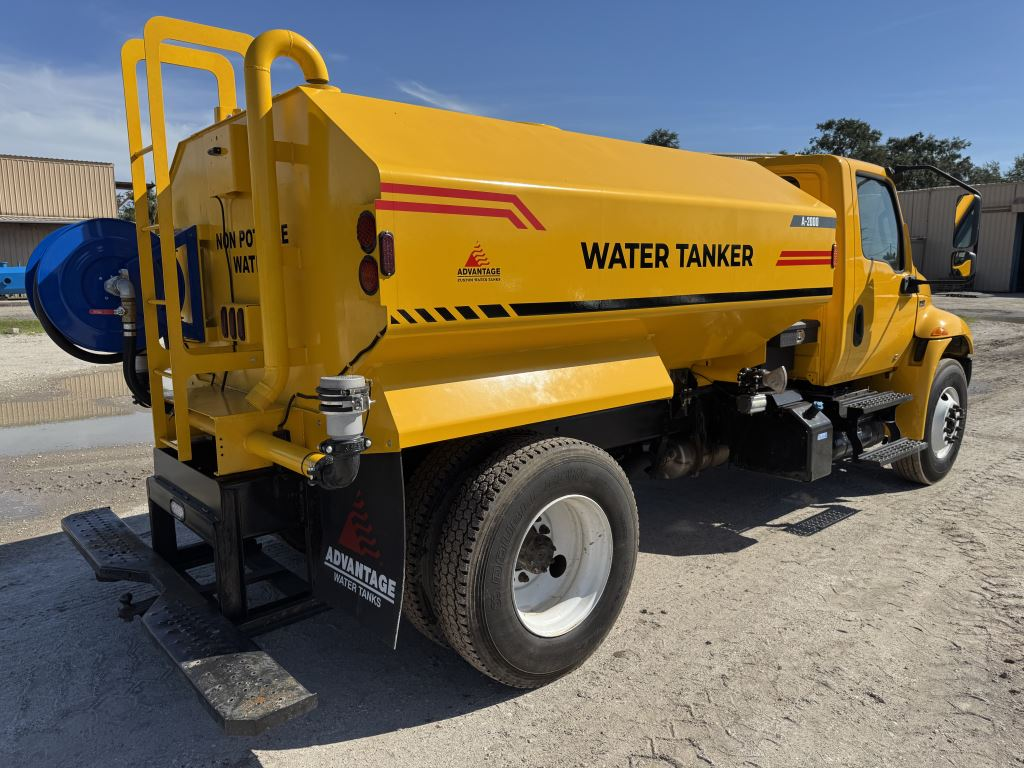

Rear spray bars are the most common setup. Mounted behind the truck, they spray as you drive forward. This works great for watering roads, covering parking areas, or any application where you’re moving through the space you need to wet.
Side spray bars mount along the truck’s sides and spray outward. These help when you’re driving along the edge of an area and need to spray adjacent ground without driving on it. Construction sites with restricted access areas or operations near buildings use side sprays to cover spaces the truck can’t enter.
Front spray bars are less common but useful for specific situations. Mounted ahead of the truck, they wet the ground before you drive over it. This works for extremely dusty conditions where you want to pre-treat areas before stirring up dust with truck movement.
Many setups combine multiple bars. Rear and side bars together let you cover roads while also spraying adjacent areas in one pass. The more complex your coverage needs, the more you benefit from multiple spray bar positions.
Water Cannons: When Long-Range Coverage Makes Sense
Water cannons are large-capacity spray heads that throw water significant distances. Unlike spray bars that work close to the truck, cannons reach areas you can’t or don’t want to drive to.
When cannons make sense:
- Spraying stockpiles from a distance
- Reaching across barriers or obstacles
- Covering large open areas from a stationary position
- Situations where constant truck movement isn’t practical
A cannon lets you park in one spot and spray a work area without driving through active operations. For sites with heavy equipment working, this keeps the water truck out of the way while still providing dust control.
The tradeoff is water consumption. Cannons use more water per minute than spray bars because they’re pushing volume across a distance. If you’re working with limited water capacity, constant cannon operation empties your tank faster than bar spraying.
Some operations need both. Spray bars for roads and general coverage, plus a cannon for reaching specific problem areas. Whether you need a cannon depends on your site layout and where dust control matters most.
Control Systems: Manual vs Automated Flow Control
How you operate your spray system affects how practical it is to use throughout the day. Control systems range from simple manual valves to automated setups.
Manual controls use valves you operate by hand or with in-cab switches. You turn sections on and off as needed. Simple and reliable, but requires attention from the operator. If you forget to turn off a section, you’re wasting water. If you don’t turn on the right section at the right time, you’re missing coverage.
Automated controls use sensors or programming to manage flow based on truck speed, direction, or other factors. When you’re moving, the system sprays. When you stop, it shuts off automatically. More sophisticated than manual, but also more components that may need maintenance.
For most operations, manual controls work fine if operators are trained and attentive. The simplicity means fewer failure points and easier troubleshooting. Automated systems shine when you have multiple trucks, inexperienced operators, or want to ensure consistent application regardless of who’s driving.
Control considerations:
- How many different spray zones do you need to control independently?
- Will the same operator run the truck daily, or will it rotate?
- Do you need flow adjustment or just on/off control?
- How important is water conservation versus ease of operation?
Your typical operation determines what makes sense. A single-operator truck on consistent routes might do fine with manual controls. A fleet with rotating operators might benefit from automated systems that reduce training needs.
Matching Spray Systems to Your Typical Dust Control Scenarios
The best spray system matches what you actually do on your sites. Think through your common situations and build equipment around those needs.
Road watering: Rear spray bar with fan or cone pattern spray heads. Width matches your typical road width. Controls should allow easy on/off as you drive routes.
Stockpile management: Water cannon plus rear spray bar. Cannon reaches piles from a safe distance. Bar handles approach roads and the surrounding area.
Site perimeter dust control: Side spray bars plus rear bar. Lets you drive perimeter routes while spraying both the road and adjacent areas.
Active work zones: Short-range spray heads on adjustable mounts. You need flexibility to direct spray around moving equipment and changing conditions.
Demolition sites: High-capacity spray heads or cannons that can knock down heavy dust. You’re dealing with more dust generation than typical operations.
Most sites don’t fit just one scenario. You need a spray system that handles your primary application while also being flexible enough for secondary needs. A rear bar with multiple spray head positions might work better than specialized equipment that only does one thing well.
Whether you’re setting up an articulated water tank, rigid frame system, or on-road unit, the spray system needs to match your operational reality.
Get Spray Systems That Work For Your Sites
Water truck spray systems aren’t one-size-fits-all. What works for road watering doesn’t work for stockpile management. What makes sense for a small site creates inefficiency on large operations.
Think through your typical day. Where do you spray? What coverage patterns work? How much flexibility do you need? The answers determine what equipment actually serves your needs.
At Advantage Water Tanks, spray system components like spray heads, pumps, and hydraulic motors are selected to match your application. They stock replacement parts so you can maintain systems over time without downtime waiting for components.
Ready to discuss spray system configuration for your specific dust control needs? Contact Advantage Water Tanks to talk through your typical job site conditions and coverage requirements. They’ll help you spec systems that balance effectiveness, operator ease-of-use, and long-term reliability.
Frequently Asked Questions
What’s the difference between spray bars and water cannons?
Spray bars are mounted pipes holding multiple spray heads that create wide coverage patterns close to the truck. They work well for roads and areas you drive through. Water cannons are large single nozzles that throw water long distances, useful for reaching areas from a stationary position like stockpiles or across barriers. Most operations use spray bars for routine coverage and add cannons when they need long-range capability for specific situations.
How do you choose spray head patterns for dust control?
Choose patterns based on your typical application. Fan patterns work best for roads and areas needing even coverage across a width. Cone patterns suit general dust suppression over work zones. Jet streams reach further for specific targets or heavy dust knockdown. Mist patterns catch airborne dust particles but don’t work in the wind. Most effective setups use multiple pattern types on different spray heads to handle various conditions throughout the day.
Should water truck controls be manual or automated?
Manual controls are by far the most common and work well when you have consistent operators who know the routes and needs. They’re simpler with fewer components to maintain. Automated controls benefit operations with multiple operators, rotating staff, or when water conservation is critical.
How many spray heads does a water truck need?
The number depends on coverage width and spray head spacing. A typical rear spray bar might have 2-3 spray heads. Side bars add more heads based on how much area you need to cover. Consider your typical roads, work zones, and whether you need simultaneous front, rear, and side spraying. More heads provide more coverage but require adequate pump capacity and increase complexity. Match spray head count to your actual coverage needs rather than maximizing quantity.
Can you add spray equipment to an existing water truck?
Adding equipment depends on your current pump capacity, available mounting points, and how the system is plumbed. Most tanks can accommodate additional spray heads or bars if the pump can handle increased flow. Water cannons require more capacity. Before adding equipment, verify your pump specifications and whether the chassis can support additional mounting hardware. Work with the tank manufacturer to ensure modifications maintain system balance and don’t create operational problems.
